Description

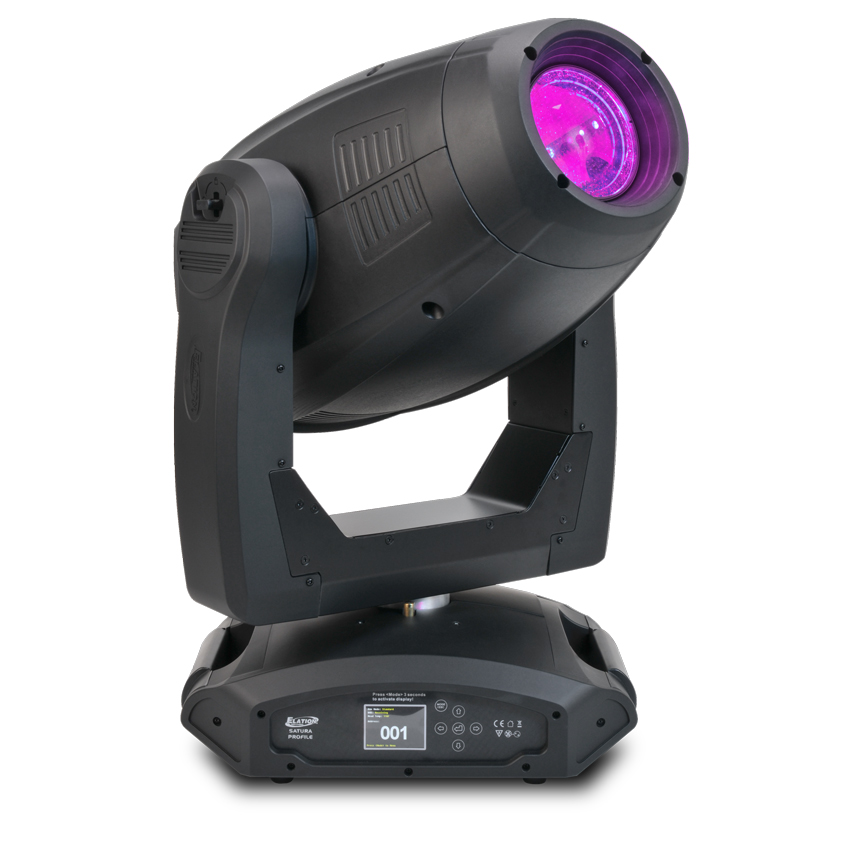

The Satura Profile™ features a new 440W LED Cool White LED engine, delivering 15,000 total output lumens, 11° to 38° zoom, full CMY color mixing and CTO, 7 dichroic colors, 6 rotating glass interchangeable gobo wheel, 7 static-stamped metal interchangeable gobo wheel which can be upgraded with an optional 4 static-stamped metal interchangeable gobo / animation effect wheel kit (sold separately), 4-blade framing shutter system, 3-facet rotating prism, frost filter, motorized iris and focus, variable dimming curves, high speed electronic shutter and strobe, hibernation mode, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 5pin XLR, and RJ45 ethernet in/out connections, powerCON in, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).
Specifications
SOURCE
440W Cool White 15,000 Lumen LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
15,000 Total Lumen Output
17,835 LUX 1,657 FC @16.4’ (5m) (Min Zoom)
2,182 LUX 203 FC @16.4’ (5m) (Max Zoom)
EFFECTS
11° – 38° Motorized Zoom
4-Blade Framing Shutter System
3-Facet Rotating Prism and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Zoom, Iris and Focus
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
Animation Effect (Optional Kit Sold Separately)
COLOR
7 Dichroic Colors
Full CMY Color Mixing
Linear CTO Color Correction
GOBOS
6 Interchangeable Rotating / Indexing Glass Gobos
7 Interchangeable Static-Stamped Metal Gobos
4 Interchangeable Metal Gobo/Animation Wheel*
*Optional Kit Sold Separately
CONTROL / CONNECTIONS
3 DMX Channel Modes (33 / 35 / 54)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3pin and 5pin DMX In/Out
RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
Locking Power Cable In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 17.7” (450mm)
Width: 20.7” (525mm)
Vertical Height: 29.3” (745mm)
Weight: 75.0 lbs. (34.0kg)
ELECTRICAL / THERMAL
AC 100-240V – 50/60Hz
600W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
